Carbon Steel Inclined Screw Feeder , Automatic Screw Feeder Machine

Product Description

Inclined Screw Conveyor Hopper Feeding Conveyor Automatic Screw Feeder is the main unit for mechanical transport operation of industry and agriculture, which uses motor to drive screw rotation and move material to achieve conveying purpose. High Quality Inclined Tube Auger Screw Conveyor Spiral Feeder is suitable for all industries such as building material, chemical industry, power industry, metallurgy, coal industry and grain industry, for horizontal or tilted transportation for powdery, granular and small lump materials, such as coal, dust, residue, cement and grain which their temperature is less than 200℃.

structure

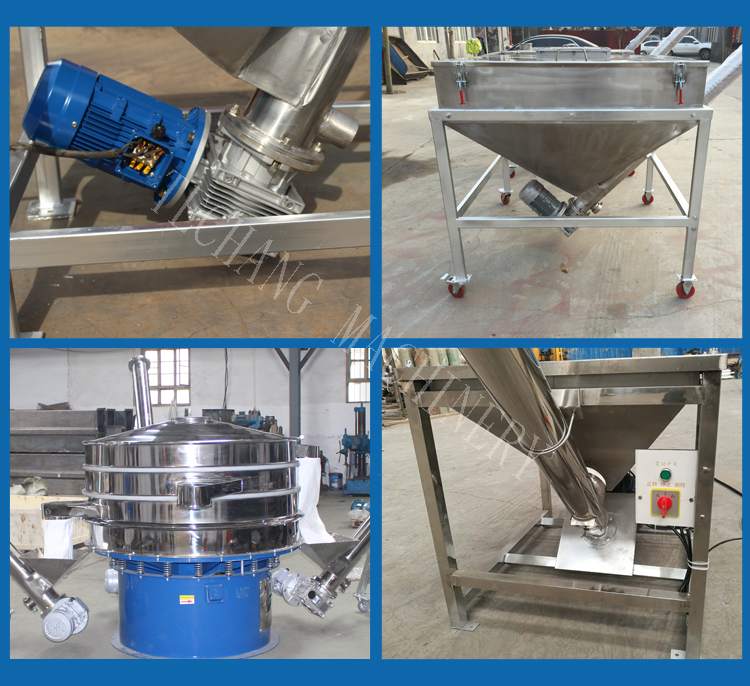

Inclined Screw Conveyor Hopper Feeding Conveyor Automatic Screw Feeder can convey sorts of powder materials. Combined with the package-machine of our company, also can be used separately. Complete machine made in stainless steel or carbon steel, the machine consists of motor, reducer, coupler, inlet, screw blade, bracket, lifting shackle, the end bearing, outlet, and so on.

Features

1. Simple structure, easy operation and excellent sealing performance.
2. Small section of whole machine, being suitable for horizontal or tilted transportation.
3. Charging and Discharging can be conducted at more than one points in the middle.

Introduction

Inclined Screw Conveyor Hopper Feeding Conveyor Automatic Screw Feeder is a kind of machine that uses the motor to drive the screw to turn and push the material to realize the purpose of conveying. It can be transported horizontally, obliquely or vertically. It has the advantages of simple structure, small cross-sectional area, good sealing, easy operation, easy maintenance and easy closed transportation.

Technical data

Model	Diameter	Screw Rotation Speed	Inclination Angle	Conveyor Length
Model	(mm)	(r/min)	(degree)	(m)
GX160	165	20,30,35,45,60,75,90,120,150,190,207,290	<90	3~30
GX219	219
GX273	273
GX325	325

Application

1. Ceramic industry: clay, silica, sand, polishing materials, etc.
2. Food industry: soybean, peanut, starch, milk powder, salt, sugar, etc.
3. Plastics industry: plastic powder, plastic particles, etc.
4. Wood industry: wood chips, wood sawing surface and byproducts, etc.
5. Environmental: the filter material, fly ash, fixed residue, waste, etc.
6. Agriculture: livestock feed, food, powder, etc.
7. Building materials: cement, sand, slaked lime,refractory material, etc.

Packaging & Shipping

Inclined Screw Conveyor Hopper Feeding Conveyor Automatic Screw Feeder is packed by wooden case or according to the customer's requested.
