Industry LS Series U Trough Screw Auger Conveyor Equipment
Industry LS Series U Trough Screw Auger Conveyor Equipment is the main units for mechanical transport operation of various
departments of industry and agricultures, screw conveyor can be
used to reduce labor intensity and improve efficiency. The working
temperature of the screw conveyor is usually -20 ~ 40℃, the
temperature of the conveying material is generally -20 ~ 80℃, the
screw conveyor suitable for horizontal and small angle arrangement,
inclination to not exceed 15, if the tilt angle is too large please
use GX series screw conveyor.
There are many models for Industry LS Series U Trough Screw Auger Conveyor Equipment, we will choose the optiomal model according to customers' needs.
| Model | Screw diameter | Screw pitch | n---rotation speed(r/min), allowable deviation<10% |
| Q---volume(m3/h), fill-factor=0.33 |
| (mm) | (mm) | n | Q | n | Q | n | Q | n | Q |
| LS160 | 160 | 112 | 112 | 8 | 90 | 7 | 71 | 6 | 50 | 4 |
| LS200 | 200 | 100 | 100 | 14 | 80 | 12 | 63 | 10 | 50 | 7 |
| LS250 | 250 | 90 | 90 | 24 | 71 | 20 | 56 | 16 | 45 | 13 |
| LS315 | 315 | 80 | 80 | 34 | 63 | 26 | 50 | 21 | 40 | 16 |
| LS400 | 355 | 71 | 71 | 64 | 56 | 52 | 45 | 41 | 36 | 34 |
| LS500 | 400 | 63 | 63 | 100 | 50 | 80 | 40 | 64 | 32 | 52 |
| LS630 | 450 | 50 | 50 | 145 | 40 | 116 | 32 | 94 | 25 | 80 |
| LS800 | 500 | 40 | 40 | 208 | 32 | 165 | 25 | 130 | 20 | 110 |
| LS1000 | 600 | 32 | 32 | 300 | 25 | 230 | 20 | 180 | 16 | 150 |
Detailed Images

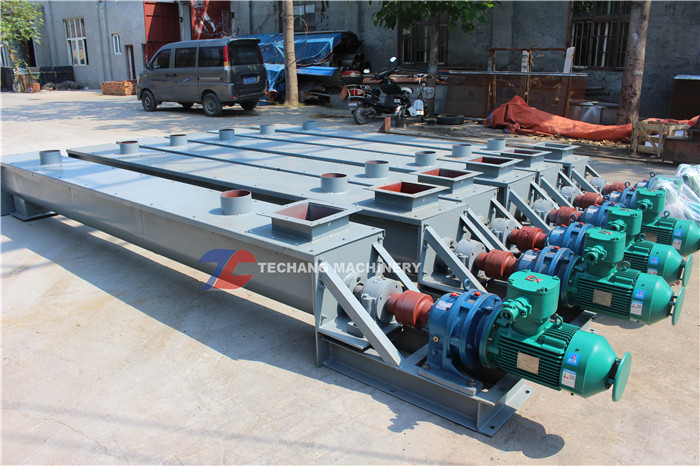

Industry LS Series U Trough Screw Auger Conveyor Equipment consists
of motor reducer, coupler, inlet, screw blade, bracket, lifting
shackle, the end bearing, outlet, and so on.
Working Principle
Working principle of Industry LS Series U Trough Screw Auger Conveyor Equipment is rotating spiral blade for screw conveyor conveying the material
goes on, the material is not spinning force with the blades of
screw conveyor is its own weight and screw conveyor casing material
for material friction screw conveyor on the axis of rotation of the
welding of spiral blade, blade surface type according to the
conveying material have different entity type belt type surface
type, such as type of screw conveyor screw axis of vane surface
terminal at the direction of material movement have thrust bearings
to the material to spiral axial reaction force, when the captain a
long, should add hanging bearing in the middle.
Features-Industry LS Series U Trough Screw Auger Conveyor Equipment
1. High quality seamless steel tube enable stiffness, can customize
to suit different working conditions and plant design.
2. Continuous fly with dual pitches to avoid self compaction,
especially designed for long distance conveying for cement.
3. High quality gear reducer with heavy duty design, high torque,
low noise, no oil leakages and durable.
4. Size ranged from Φ168, Φ219, Φ273, Φ323, Φ407, inclination and
length made to customer order.
